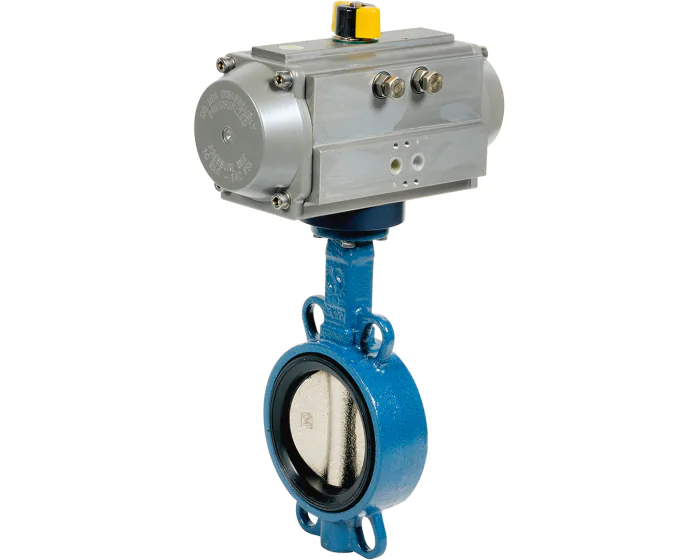

The 1125 wafer butterfly valve has a ductile iron GL body, a nickel-plated disc and an EPDM seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar. Mounting between flanges PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN40 - 1''1/2 |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Nickel-plated ductile iron |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Pneumatic actuator type | Spring return |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| CE | Risk category III |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 | 262003017006R | S1000342 |
€179.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 | 262003017107R | S1000343 |
€227.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' | 262004017006R | S1000344 |
€180.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' | 262004017107R | S1000345 |
€228.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 | 262005017007R | S1000346 |
€203.43
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 | 262005017108R | S1000347 |
€271.44
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' | 262006017007R | S1000348 |
€206.77
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' | 262006017108R | S1000349 |
€283.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' | 262007017008R | S1000350 |
€247.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' | 262007017110R | S1000351 |
€442.56
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' | 262008017008R | S1000352 |
€264.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' | 262008017110R | S1000353 |
€445.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' | 262009017009R | S1000354 |
€314.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' | 262009017111R | S1000355 |
€550.56
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 262010017010R | S1000356 |
€427.73
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' | 262010017112R | S1000357 |
€670.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' | 262011017011R | S1000358 |
€787.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' | 262011017113R | S1000359 |
€1,152.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' | 262012017012R | S1000360 |
€909.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' | 262012017115R | S1000361 |
€1,856.46
(excl. btw)
|
add to cart |
